Yard Ramp - Portable Dock Access
The most Competitive Pricing On Mobile Yard Ramps

Where to use Mobile Yard Ramps:

For Temporary and Permanent Locations

 - Satellite Warehouses
 - Lumber Yards / Farms /

   Dealerships
 - Temporary Supply Depots
 - Forward Military Supply Depots
 - Freight Yard Consolidation
   Points
 - Waste Recycling Sites

 Ideal for Emergency Management, Military, and Commercial Sites

Take it with you when you move!!

                            Convert Inaccessible Storage Locations into
                                              active Storage and Distribution Sites -
Quick!


The Yard ramp is simply moved into position at trailers, railcars, or docks. The operator utilizes a self-contained, double-acting hydraulic pump to adjust the unit to the proper position. In minutes you are ready to load or unload freight. Solid 18" rubber tires provide easy positioning and towing. Open serrated steel grating provides excellent traction while preventing build-up of snow, water, and other debris. Beveled approach provides a smooth transition. For truck or railcar to ground applications choose a 36' unit including a level off. Choose a 30' straight design for quick loading from dock to ground.

The optional rampclamp or tow bar assists operator in moving the Yardramp over short distances. Forklift tine inserts into the swiveling lift loop and is secured by a locking device.

     Hydraulic Pump
  • Double-acting
  • Two hydraulic cylinders

The hydraulic system allows for smooth and quick raising of the front lip to the proper dock or trailer height. Simply open the release valve to safely lower the unit into position. The pump is mounted internally to protect it from accidental damage.



       Undercarriage
  • Tubular steel box undercarriage assembly
  • 18" solid rubber pneumatic profile tires

Heavy-duty wheels and solid rubber, pneumatic profile tires make positioning the Yardramp easy. For stationary dock installations, standard Yardramps are available in 30' and 36' lengths without wheel assemblies.



Moving Devices

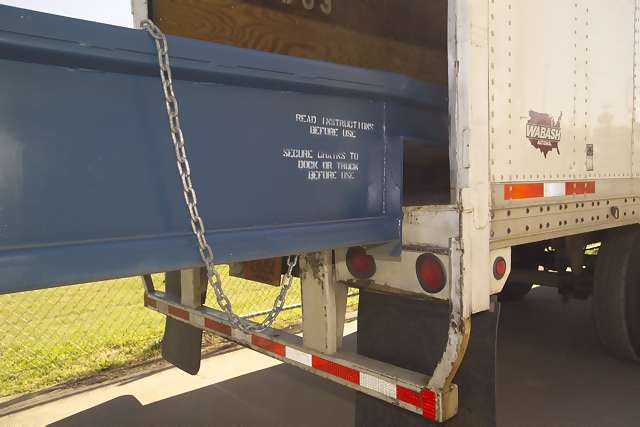

Standard safety chains hold Yardramp securely to the trailer or dock.

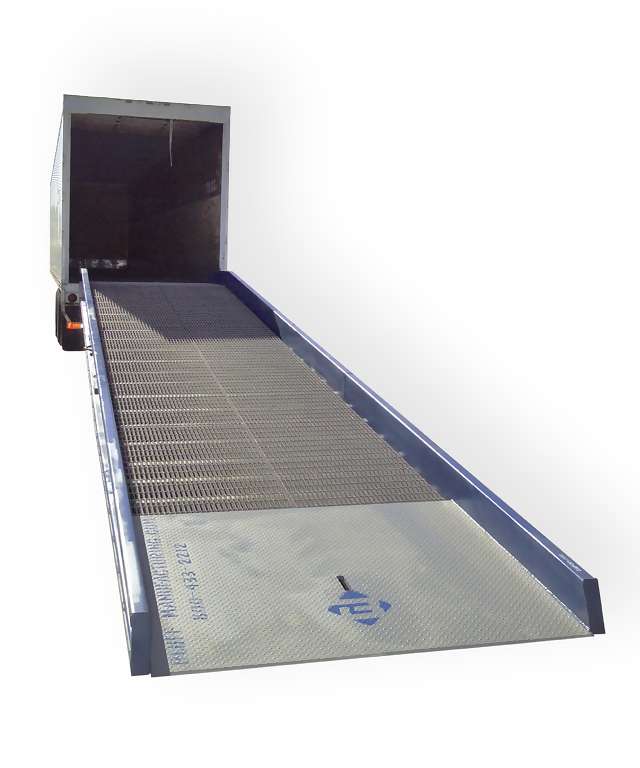

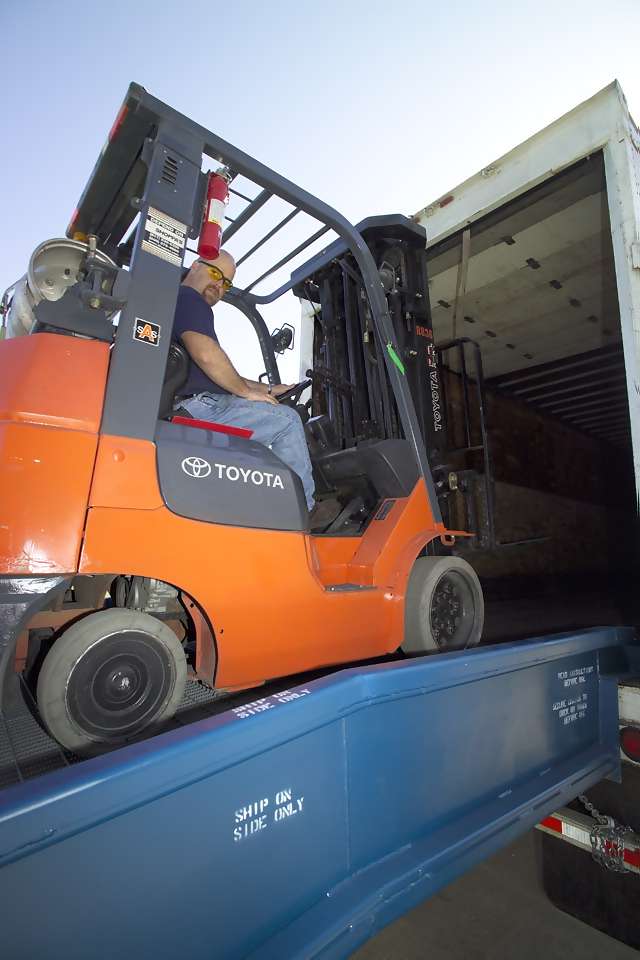

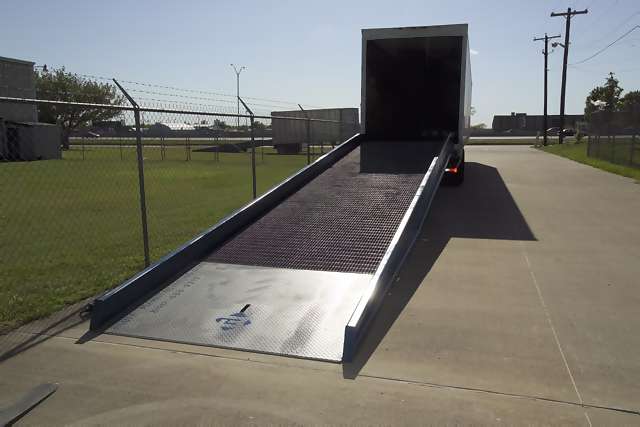

Bluff-yardramp-5.jpg (31415 bytes) Bluff-yardramp-2.jpg (26004 bytes) Bluff-yardramp-8.jpg (51800 bytes) bluff-yardramp-4.jpg (24916 bytes)
Click on a thumbnail above for enlargements

Types of Yard Ramps

Straight 30' Length
This type is used primarily for ground to dock applications, where no Level off is required.
Level off 36' Length
A six-foot Level off at the end of the ramp adds maneuverability for forklifts. This allows forklifts easier turning access into railcars and allows them to handle pallets next to the door openings. The 36' ramp is most popular where end-loading is required. Level off type is noted by the letter "L" following the model number.

Some Units in Stock For Quick Shipment

Capacity  Length Width     Model Number       Weight

Price

 16,000 lbs. 30' 70" 16 SYS 7030   4159 lbs.
30' 84" 16 SYS 8430   4964 lbs.

Call for
Pricing

36' 70" 16 SYS 7036L  5102 lbs.
  36' 84"  16 SYS 8436L   5868 lbs. Stock
 20,000 lbs. 30' 70"  20 SYS 7030   4384 lbs.
30' 84" 20 SYS 8430  5189 lbs.
36' 70"  20 SYS 7036L  5327 lbs.
  36' 84"  20 SYS 8436L  6048 lbs.  Stock --Most Popular---
 25,000 lbs. 30' 70" 25 SYS 7030  4780 lbs.
30' 84"  25 SYS 8430   5605 lbs.
36' 70" 25 SYS 7036L  5762 lbs.
36' 84" 25 SYS 8436L  6544 lbs.
