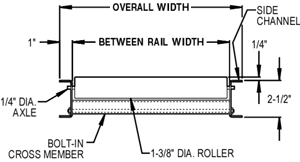

Standard Specifications:
Frame:
2 1/2" deep x 1" flange x 12 ga. painted formed
steel or 1/8" heat treated aluminum channel with
bolt-in cross members.
Couplings:
Bolts on one end - hooks on the other
opposite end.
Rollers:
1 3/8" diameter x 18 ga. galvanized steel or
heat treated aluminum tubing. Free floating
ball bearings both ends.  Spring Loaded
axle allows roller to be easily removed or
reinserted.
Axles:
1/4" diameter.

Capacity Chart
Frame:
Steel - 270#/ft on 5'-0" support centers
           38#/ft on 10'-0" support centers
         *50# per steel roller maximum
Aluminum - 150#/ft on 5'-0" support centers
                   18#/ft on 10'-0" support centers
          *35# per aluminum roller maximum

Steel

Overall
Width

Roller
Centers

5'-0" Long

Wt
ea

Price

10'-0" Long

Wt
ea.

Price

12"

1 1/2"

SSR-12-1.5-5

55.0

SSR-12-1.5-10

101.0

3"

SSR-12-3-5

37.0

SSR-12-3-10

68.0

4 1/2"

SSR-12-4.5-5

32.0

SSR-12-4.5-10

58.0

6"

SSR-12-6-5

29.0

SSR-12-6-10

52.0

15"

1 1/2"

SSR-15-1.5-5

62.0

SSR-15-1.5-10

112.0

3"

SSR-15-3-5

42.0

SSR-15-3-10

78.0

4 1/2"

SSR-15-4.5-5

33.0

SSR-15-4.5-10

61.0

6"

SSR-15-6-5

30

SSR-15-6-10

55.0

18"

1 1/2"

SSR-18-1.5-5

72.0

SSR-18-1.5-10

135.0

3"

SSR-18-3-5

47.0

SSR-18-3-10

97.0

4 1/2"

SSR-18-4.5-5

40.0

SSR-18-4.5-10

73.0

6"

SSR-18-6-5

32.0

SSR-18-6-10

63.0

24"

1 1/2"

SSR-24-1.5-5

91.0

SSR-24-1.5-10

168.0

3"

SSR-24-3-5

58.0

SSR-24-3-10

108.0

4 1/2"

SSR-24-4.5-5

47.0

SSR-24-4.5-10

88.0

6"

SSR-24-6-5

42.0

SSR-24-6-10

78.0

Aluminum

Overall
Width

Roller
Centers

5'-0" Long

Wt
ea

Price

10'-0" Long

Wt
ea.

Price

12"

1 1/2"

SAR-12-1.5-5

29.0

SAR-12-1.5-10

53.0

3"

SAR-12-3-5

20.0

SAR-12-3-10

36.0

4 1/2"

SAR-12-4.5-5

17.0

SAR-12-4.5-10

30.0

6"

SAR-12-6-5

15.0

SAR-12-6-10

27.0

15"

1 1/2"

SAR-15-1.5-5

33.0

SAR-15-1.5-10

56.0

3"

SAR-15-3-5

23.0

SAR-15-3-10

41.0

4 1/2"

SAR-15-4.5-5

18.0

SAR-15-4.5-10

32.0

6"

SAR-15-6-5

16.0

SAR-15-6-10

29.0

18"

1 1/2"

SAR-18-1.5-5

38.0

SAR-18-1.5-10

70.0

3"

SAR-18-3-5

27.0

SAR-18-3-10

51.0

4 1/2"

SAR-18-4.5-5

20.0

SAR-18-4.5-10

38.0

6"

SAR-18-6-5

18.0

SAR-18-6-10

33.0

24"

1 1/2"

SAR-24-1.5-5

48.0

SAR-24-1.5-10

88.0

3"

SAR-24-3-5

30.0

SAR-24-3-10

56.0

4 1/2"

SAR-24-4.5-5

25.0

SAR-24-4.5-10

46.0

6"

SAR-24-6-5

22.0

SAR-24-6-10

41.0

Gravity Roller Curves
 1 3/8" diameter

Steel

Width

Model Number

90 Degree Outside Radius

Weight ea

Price $

12"

SSRC-12-90

36"

70.0

15"

SSRC-15-90

39"

75.0

18"

SSRC-18-90

42"

80.0

24"

SSRC-24-90

48"

141.0

Aluminum

12"

SARC-12-90

36"

28.0

15"

SARC-15-90

39"

31.0

18"

SARC-18-90

42"

35.0

24"

SARC-24-90

48"

50.0
