Deluxe 2 Wheel Drum Truck


20BT & 20BTW
  Deluxe Series

Part # 240003 240004
Model # 20BT 20BTW Features:

♦An industry standard
♦Floating axle reduces effort required to break
  over and balance load
♦Easiest drum truck for one person to use
♦Chime hook can be stored at the top of the
  frame for easy use
♦Replaceable hard faced double-beveled
  nose prongs
♦Self-standing
♦1,000 lb capacity
Capacity 1,000 lbs 1,000 lbs
Weight 74 lbs 59 lbs

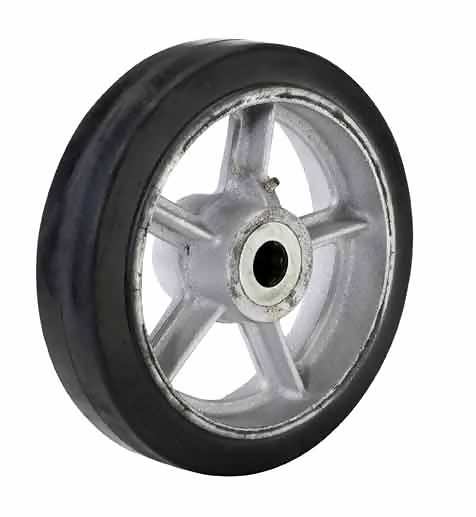

Wheel Type: btwheel.jpg (14493 bytes)
10" x 2.5"
Mold on Rubber
10" x 2.25"
Polyolefin
Price Each: $ 274.38 $ 243.12

Standard 4 Wheel Drum Truck

30BT & 30BTW
 Standard Series
Part # 240005 240006
Model # 30BT 30BTW Features:

♦Multi-functional drum truck allows you to move
  drums on four wheels and acts as a drum
  cradle for storage and dispensing
♦Frame clearance for dispensing into 5 gallon
  pails
♦Polyolefin rollers allow for easy faucet
  positioning of drums
♦Rear axle allows for loading and unloading of
 drums from pallets
♦Kickstand
♦16.5" drain height
♦1,000 lb capacity
Capacity 1,000 lbs 1,000 lbs
Weight 82 lbs 66 lbs
Wheel Type: btwheel.jpg (14493 bytes)
10" x 2.5"
Mold on Rubber
10" x 2.25"
Polyolefin
Price Each: $ 225.42 $ 179.40

Poly Drum Truck - For Poly Drums

50BT & 50BTW
 Poly Drum Series
Part # 240083 240078
Model # 50BT 50BTW Features:

♦Patented design
♦Acts as a Poly Drum Truck or Drain Stand
♦Wide 'feet' and belt eliminate the risk of
  drums being punctured by nose prongs
  and chime hooks
♦Handles all poly drums (except overpacks)
♦6" x 1.5" rear wheel
♦1,000 lb capacity


Capacity 1,000 lbs 1,000 lbs
Weight 86 lbs 65 lbs
Wheel Type: btwheel.jpg (14493 bytes)
 10" x 2.5"
Mold on Rubber
10" x 2.25"
Polyolefin
Price Each: $ 257.40 $ 217.14

Combination Drum and Hand Truck

156DH
Combination Drum
 and Hand Truck
Part # 210340 210349
Model # 156DH-Z 156DH-HB



Features:

♦Up to 800lb capacity
♦Can be used as a hand truck or a drum
  truck
♦Chime hook works with 55 and 30 gallon
  drums
♦Curved frame accomodates 5 gallon pails
   and kegs
♦15" depth




Capacity 700 lbs 800 lbs
Weight 39 lbs 42.5 lbs
Wheel Type:
10" x 2.75"
Semi-Pneumatic

8" x 2"Mold on Rubber
Price Each: $ 120.60 $ 100.32
