Drum Faucets, Drum Valves and Gauges
for Plant Maintenance and Repair Operations

Wesco Drum Faucets are standard issue for Store Rooms and Maintenance Departments around the Country. Count on Wesco to provide Top Quality drum faucets, drum valves, and gauges.

Zinc Die Cast Faucets Features: ♦Zinc die cast alloy ♦Easy-to-use self-closing design ♦Can be padlocked in closed position ♦.75" NPT connection ♦Viton gasket
	Part #: 272083 With flame arrestor FM approved for non-viscous liquids Sold only in packages of 10 Price each.....$ 21.78/ea
	Part #: 272080 No flame arrestor FM approved for viscous liquids Sold only in packages of 10 Price each.....$ 9.30
Heavy Duty Brass Faucets Features: ♦Easy-to-use self-closing design ♦.75" NPT connection ♦Teflon® gasket

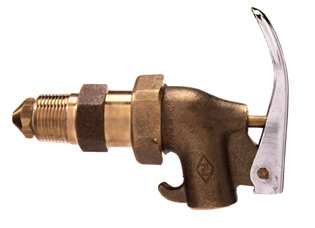

	Part #: 272037 Adjustable shank designed to easily adjust to proper drain position after installing in drum. Internal flame arrestor. FM approved for use with oils (under 30 SAE) and non-corrosive flammables. Minimum order Qty. 2. Price each.....$ 42.42
	Part #: 272081 Rigid shank design. External flame arrestor. FM approved for use with oils (under 30 SAE) and non-corrosive flammables. Minimum order Qty. 2. Price each.....$ 36.24
Heavy Duty Stainless Steel Faucet Features: ♦Adjustable shank designed to easily adjust to proper drain position after installing in drum. ♦.75" NPT connection ♦Teflon® gasket
	Part #: 272038 Internal flame arrestor. FM approved for use with oils (under 30 SAE) and nonflammables, compatible with stainless steel. Price each.....$ 122.95
Heavy Duty 2" Brass Gate Valve Features: ♦Fast, self-closing Teflon® blade ♦2" NPT connection
	Part #: 272034 FM approved for use with viscous non-corrosive fluids heavier than 30 SAE Price each.....$ 93.17
Vents Features: ♦Automatically relieves pressure at 5 PSI ♦Maximum flow of 220 CFM at 20 PSI ♦Flame arrestor prevents sparks and flame from igniting drum contents ♦Fits 2" bung hole in steel and plastic drums
	Part #: 272030 For drums in horizontal (pouring) position Manual vacuum relief by lifting and rotating valve stem FM approved Minimum order Qty. 2. Price each.....$ 43.85

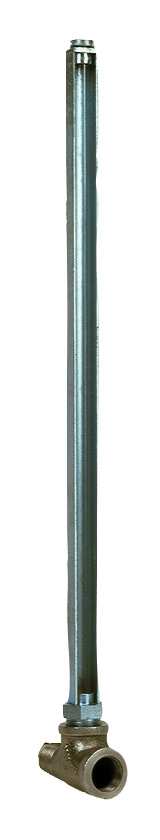

Gauges Features: ♦Economical way to gauge drum contents ♦Heavy gauge glass and plated steel construction ♦Accepts standard .75" NPT faucet ♦Buna-N seals; .75" NPT connection. 22" height (with supplied fitting)
	Part #: 272005 Basic gauge with fitting Price each.....$ 63.96 Part #: 272006 Basic gauge with fitting and 272080 faucet Price each.....$ 72.96 Part #: 272041 Basic gauge with fitting and 272083 faucet Price each.....$ 85.80
Ground and Bond Wires Features: ♦A wide variety of designs for grounding and bonding applications ♦Inverted ring fits web-lifting slings
	Part #: 272032 Deluxe Ground Wire: For connection between drum and true ground. Three-foot-long heavy duty wire rope with "C" clamp on one end and alligator clip on the other Minimum order Qty. 5. Price each.....$ 19.80
	Part #: 272031 All Purpose Bond Wire: For bonding drums to each other, to containers being filled, and to racks. Three-foot-long heavy duty wire rope with "C" clamp on one end and alligator clip on the other Minimum order Qty. 5. Price each.....$ 16.44
	Part #: 272033 Standard Bond Wire: For bonding drums to each other, to containers being filled, and to racks. Three-foot-long heavy duty wire rope with alligator clips on both ends. Minimum order Qty. 5. Price each.....$ 12.60
	Part #: 272047 Heavy Duty Coiled Ground Wire Minimum order Qty. 5. Price each.....$ 20.16
