Bluff Steel and Aluminum
Dock Boards and Dock Plates
We've got the selections and the inventory!! Stocked around the country
in 9 different warehouses. Dock Boards and Dock Plates to keep you moving!
|
|
We tell people all the time
we've got the best prices on steel and aluminum boards, |
|
|
Shipping Points: |
Cincinnati, Oh. Dayton, NJ. Houston, Tx. Hayward, Ca. Los Angeles, Ca. Seattle, Wa. |
Shipping
Points across America |
Prices Updated 7/28/06
| Dock Plates |

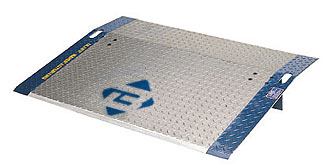

 Dock Plates: Pallet Jack and Hand truck un/loading Light Weight Aluminum - for non-powered loading applications. Light weight aluminum dockplates are designed for the ease of use for light weight loading and unloading applications involving: pallet jacks, and handtrucks. Lip bend is 11 degrees, beveled deck edges allow for smooth transition between truck and dock. Deck is made of lightweight aluminum treadplate. No Fork lift usage. |
|||||
| Height differential between dock and truck, 14% grade | Size w x l |
Model Number | Capacity | Wt lbs. | Price each |
| "A" Models - 3/8" thick | |||||
| 3 1/2" | 36" x 36" | #A3636 | 3,238# | 63# | 296.80 |
| 3 1/2" | 48" x 36" | A4836 | 4,383# | 79# | 366.80 |
| 5" | 48" x 48" | A4848 | 2,388# | 104# | 451.75 |
| 7" | 48" x 60" | A4860 | 1,656# | 128# | 536.65 |
| "B" Models - 1/2" thick | |||||
| 3 1/2" | 48" x 36" | B4836 | 6,265# | 102# | 465.75 |
| 5" | 48" x 48" | B4848 | 4,532# | 134# | 592.50 |
| Aluminum Dock Boards | ||||||

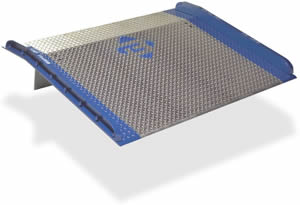

 Aluminum Dock Boards: Aluminum dockboards ergonomically designed for lightweight handling. Much lighter than steel. Steel side curbs help prevent runoff. Aluminum diamond pattern plate for increased traction, and and locking legs underneath the board provide secure positioning. Lip bend is 11 degrees. Two heavy duty capacities to choose from. * Aluminum dock boards with steel side curbs |
||||||
| Height differential for pallet jacks or electric lifts | Height differential for gas or propane forklifts | Size w x l |
Model Number | Capacity | Wt lbs. | Price each |
| 14% grade | "AC"
Models - 3/8" thick 10,000# cap. |
|||||
| 3 1/2" | 5" | 60" x 36" | #AC6036 | 10,000# | 127# | 599.50 |
| 5" | 7" | 60" x 48" | AC6048 | 10,000# | 165# | 769.00 |
| 7" | 9" | 60" x 60" | AC6060 | 10,000# | 202# | 938.00 |
| "BC"
Models - 1/2" thick 15,000# cap. |
||||||
| 5" | 7" | 60" x 48" | BC6048 | 15,000# | 201# | 966.90 |
| 7" | 9" | 60" x 60" | BC6060 | 15,000# | 247# | 1,178.80 |
