Bishamon Mobile Lift Tables

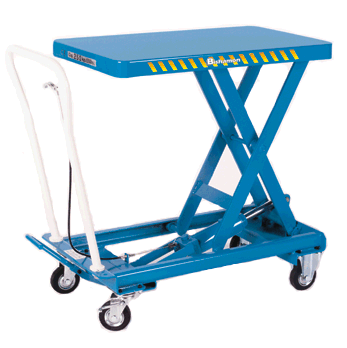

Bishamon MobiLift scissor lift tables are rugged
industrial lift tables with push-bars and casters. BX Series lift tables provide
improved ergonomics by placing the load at a convenient work height while
providing the mobility to locate the lift where it is needed.
|
|
Toll Free 800-352-0272 |
||||
|
Phone: 800-352-0272 Fax: 800-353-3681 |
equipmentandsupply.com | ||||
| Home | Open
an Account |
Ordering Information |
Order Form | Customer Service |
Contact Us |
Mobile Lift
Tables
MobiLift™ tables are
available in various capacities and travels to satisfy a wide variety of
applications. The manual foot pump models have an integrated hydraulic
pump/cylinder assembly. The MobiLift™ scissor lift tables add the value of
mobility to the hydraulic lift table concept. Exceptional functionality and
maneuverability is apparent, whether loaded or empty. In addition, rugged
construction and premium-quality hydraulics complement their ease of use with
low maintenance.
Operation:
The MobiLift™ design allows workers to easily move and position loads to a
convenient working height. By minimizing undesirable lifting, reaching and
stretching, MobiLifts increase productivity and decrease workplace injuries.
Applications:
MobiLift™ tables are used in a wide variety of applications. From
stocking shelves in retail stores to lifting and moving materials in libraries,
nurseries, machine shops and manufacturing operations, MobiLifts improve
productivity.
| Model | Travel Inches |
Capacity | Platform
Height Min Max |
Platform Size | Overall Size | Strokes to Max Ht | Wt | Price | |
| BX-15 | 20.4 | 330# | 8.4" | 28.8" | 17.7" x 27.6" | 17.7" x 33.6" x 31.3" | 15 | 75 | $ 519.75 |
| BX-25 | 22.7 | 660# | 11.3" | 34.1" | 19.7" x 32" | 19.7" x 39.7" x 35.3" | 25 | 200 | 644.00 |
| BX-50 | 22.1 | 1100# | 17.2" | 39.3" | 20.4" x 39.8" | 20.5" x 46.9" x 37.8" | 50 | 300 | 882.00 |
| BX-75 | 22.1 | 1,760# | 17.2" | 39.3" | 20.4" x 39.8" | 20.5" x 49.5" x37.8" | 67 | 300 | 997.00 |
| Double Scissor Models | |||||||||
| BX-30S | 45.1 | 660# | 17.0" | 62.1" | 20.4" x 39.8" | 20.5" x 49.5" x 37.8" | 64 | 340 | 1,169.00 |
| BX-50S | 23.0 | 1,100# | 16.5" | 39.5" | 18.1" x 25.6" | 18.1" x 37.2" x 37.0" | 66 | 275 | 1,545.00 |
| BX-50W | 45.1 | 1,100# | 17.0" | 62.1" | 20.4" x 39.8" | 20.5" x 49.5" x 37.8" | 90 | 380 | 1,582.00 |
Standard Features:
• Heavy-duty construction with captured scissor rollers for maximum stability
• Superior hydraulic systems feature an integrated pump-cylinder for maximum reliability
• High quality casters and wheels for exceptional rollability
• Dual action caster brake locks both the wheel and the swivel
• Ergonomic push handle with convenient lowering control
• Lowering control automatically stops when released for added safety
• Convenient maintenance pins secure the scissor legs for inspection and maintenance
• Quality powder coated finish provides exceptional durability and corrosion resistance
