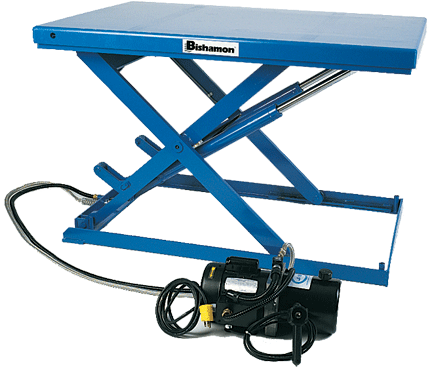

Bishamon - Lo-Profile
LX Series
Lo-Profile lift tables provide lifting power from a very low elevation.
This low collapsed height provides easy access for pallet jacks,
4 - wheeled
carts and other devices requiring low profile. The Lo-Profile™ is also an
excellent choice for conveyor transfer.
|
|
Toll Free 800-352-0272 |
||||
|
Phone: 800-352-0272 Fax: 800-353-3681 |
equipmentandsupply.com | ||||
| Home | Open
an Account |
Ordering Information |
Order Form | Customer Service |
Contact Us |
LoProfile™
LX Series
| Standard Features • Extremely low collapsed heights of 2.9” to 4.3” provides access for rolling products, carts or pallet trucks • Electric full-perimeter toeguard around the platform provides optimum operator safety • Heavy-duty construction with captured scissor rollers for maximum stability |
• Remote power unit with hand held control • 24V operator control voltage • High performance external electrohydraulic power unit • Durable steel braided hydraulic hose |
Optional Accessories |
| Model | Capacity | Table |
Table Ht. |
Power Unit | Pricing | |
| Min | Max | |||||
| LX-25S | 550 | 23.5" x 32.5" | 2.9" | 20.9 | 1/2hp 115v | $ 2634 |
| LX25L | 550# | 23.5" x 40.0" | 2.9" | 30.0 | 1/2hp 115v | $ 2697 |
| LX-50S | 1,100# | 23.5" x 32.5" | 2.9" | 20.9 | 1/2hp 115v | $ 3116 |
| LX-50L | 1,100# | 23.5" x 40" | 2.9" | 30.0 | 1/2hp 115v | $ 3185 |
| LX-100W | 2,200# | 34.5"x51.0" | 3.3" | 38.6" | 1/2hp 115v/230v-460v | $ 4309 |
| LX-100N | 2,200# | 24"x51.0" | 3.3" | 38.6" | 1/2hp 115v/230v-460v | $ 4214 |
| LX-200WM | 4,400# | 45.5"x61.5" | 4.3" | 39.4" | 1/2hp 115v/230v-460v | $ 5683 |
| LX-200N | 4,400# | 33.5"x55.5" | 4.3" | 39.4" | 1/2hp 115v/230v-460v | $ 5613 |
| LX-200WL | 4,400# | 45.5"x81" | 4.3" | 39.4" | 1/2hp 115v/230v-460v | $ 5807 |
| Options: | ||||||
| Foot Operated Control - Foot Control | $ 165 | |||||
| Approach Ramp - (for Carts approx length 23") | $ 281 | |||||
| Approach Ramp for LX-200 - (for Carts approx length 23") | $ 375 | |||||
| Pallet Truck Approach Ramp - (for pallet truck access length 50") | $ 408 | |||||
| Pallet Truck Approach Ramp for LX-200 - (for pallet truck access length 60") | $ 469 | |||||
