Autoquip Tilters
Autoquip has been a leader in Material Handling Manufacturing for many years. Since its inception in 1947 Autoquip has grown by leaps and bounds in Work Station and Assembly Equipment.

Autoquip Scissor Lifts and Tilters

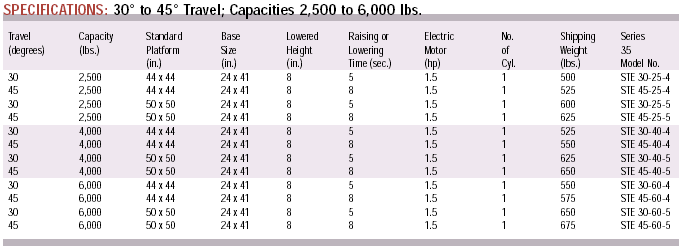

The Series 35 Tilter brings parts and hard-to-reach objects where they are needed, within easy reach of a worker. The tilter reduces the need to reach and bend over, which are the leading causes of back injuries. Typically tilters are used to access bins and baskets of small parts in assembly.

Autoquip Tilters

KEY FEATURES

· Lubricated-for-life composite
bearings on all pivot points
· Solid steel construction
· Turned, ground, polished and
hard-chromed axle pins
· Double-wire braided hydraulic
hoses
· Polyethylene reservoir
· Maintenance (safety) locks in
base-frame
· Factory tested to 110% capacity
· Internally mounted power unit
· Pre-wired power unit with UL
approved and labeled controls
· Built and designed in accordance
with ANSI MH29.2
· 12" high lip standard
· 28" width x 38" length minimum
platform

BENEFITS

· Maintenance-free bearings, no greasing
· Minimal platform deflection
· Extended bearing life
· Extended hose life for added safety
· Polyethylene reservoir will not contain rust,
weld slag or condensation apparent with
metal tanks. Allows visual checking of oil level
· Easy access to hydraulic/electrical
components for servicing
· Ready-to-operate lift with zero plumbing and
minimal wiring

POWER SUPPLY The electric motor is internally mounted. It is available in either 1 1/2 hp three-phase or 3/4 hp single-phase, with 24V AC control voltage.

CUSTOM DESIGNS
A number of "customized" engineering plans are already on file for the STE Series. Additionally, Autoquip offers computerized engineering services for development of "one-of-a-kind" ergonomic tilter applications.
