Autoquip Scissor Lifts - Work Positioners
Series 35 is the most versitile and popular family of lifts from Autoquip. This family of lifts incorporates the Autoquip quality that is respected worldwide. Work positioners such as these reduce worker fatigue and greatly reduce the serious back injuries to workers. They bring the work to the worker and increase a factory's productivity.

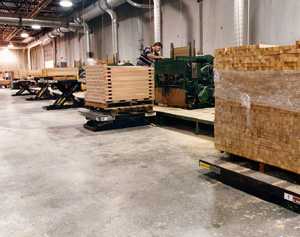

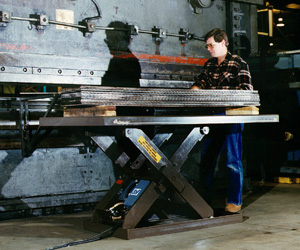

Click on a thumbnail for application enlargement



Features:
· Lubricated-for-life composite bearings on all pivot
  points
· Solid steel legs with stiffener bars
· Turned, ground, polished and hard-chromed axle
   pins
· Double-wire braided hydraulic hoses
· Velocity fuses on cylinders
· Polyethylene reservoir
· Maintenance (safety) locks in base-frame
· Factory tested to 110% capacity
· Internally mounted power unit
· Pre-wired power unit with UL approved and
  labeled control components
· Built and designed in accordance with ANSI
  MH29.1		 Benefits:
· Maintenance-free bearings, no greasing
· Minimal platform deflection
· Extended bearing life
· Extended hose life for added safety
· Zero free fall in case of severed hose-safety first!
· Reservoir will not contain rust, weld slag or
  condensation apparent with metal tanks.
  Allows visual checking of oil level
· Easy access to hydraulic/electrical components
  for servicing
· Ready-to-operate lift with zero plumbing and
  minimal wiring
· Backed by the best warranty in the industry
POWER SUPPLY
· The electric motor is internally mounted. It is available in either 1 1/2 hp three-phase
  or 3/4 hp single-phase, with 24V AC control voltage. The 36S15 has 115 volt controls.

Call for Pricing
of these Units
Model Travel (inches) Capacity (lbs#) Lowered Height (inches) Raised Height (inches) Max# End Load @ Std# Platform (lbs#) Max# Side Load @ Std# Platform (lbs#) Base Frame Width (inches) Base Frame Length (inches) Minimum Platform Width (inches) Minimum Platform Length (inches) Maximum Platform Width (inches) Maximum Platform Length (inches) Raising or Lowering Time Loaded (seconds) Motor Size (hp) Number of Cylinders Shipping Weight Approx# (lbs#)
24S25 24 2500 6.5 30.5 2500 2500 24 36 24 36 48 60 8 1.5 1 500
24S40 24 4000 6.5 30.5 4000 4000 24 36 24 36 48 60 11 1.5 1 510
24S60 24 6000 6.5 30.5 4500 4500 24 36 24 36 48 60 16 1.5 2 530
24S80 24 8000 7 31 4500 4500 24 36 24 36 48 60 22 1.5 2 650

36S15 36 1500 6.5 42.5 1000 750 24 48 24 48 48 72 28 0.5 1 580
36S25 36 2500 6.5 42.5 2500 2500 24 48 24 48 48 72 12 1.5 1 610
36S40 36 4000 6.5 42.5 3500 3500 24 48 24 48 48 72 17 1.5 1 620
36S60 36 6000 6.5 42.5 3500 3500 24 48 24 48 48 72 25 1.5 2 650
36S80 36 8000 7 43 3500 3500 24 48 24 48 48 72 34 1.5 2 750

48S25 48 2500 7 55 2500 2500 24 64 24 64 48 96 16 1.5 1 820
48S40 48 4000 7 55 3500 3500 24 64 24 64 48 96 22 1.5 1 830
48S60 48 6000 7 55 3500 3500 24 64 24 64 48 96 33 1.5 2 860
48S80 48 8000 7.5 55.5 3500 3500 24 64 24 64 48 96 44 1.5 2 960

60S25 60 2500 8 68 2500 2500 32 87 32 87 60 120 22 1.5 1 1750
60S40 60 4000 8 68 3500 3500 32 87 32 87 60 120 44 1.5 2 1800
60S60 60 6000 8 68 3500 3500 32 87 32 87 60 120 44 1.5 2 1850
60S80 60 8000 12 72 8000 8000 32 90 32 90 60 120 36 1.5 2 4400
60S100 60 10000 12 72 10000 9000 32 90 32 90 60 120 36 1.5 2 4500
60S120 58 12000 12.5 70.5 12000 10000 32 90 32 90 60 120 60 1.5 2 4600
60S150 58 15000 12.5 70.5 14000 12000 32 90 32 90 60 120 60 1.5 2 4700
