Excel Storage Products - USP Pallet Rack - Tear Drop Style

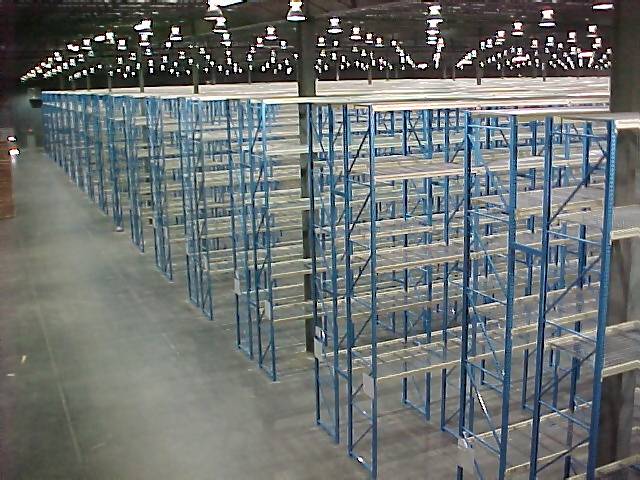

Selective pallet rack for pallet storage of all types is no problem
with our interchangeable teardrop style pallet rack,
beams and frames stocked for quick shipment. Excel Storage
Products ESP - United Steel
Products USP - is World renowned for high quality pallet storage systems used with or without wire
decking. Wire decking is fire sprinkler friendly
and adds an extra safety factor when putting pallets into rack or
additionally when individual stock is placed onto shelf levels for
hand stack applications.
Excel
Storage Products
Selective Pallet Rack
The quality seal of USP
means capacity standards for the Rack Manufacturers Institute are met,
which guarantees you the highest quality rack product. Components
are powder coated for a durable finish that lasts.
In
Stock
Selective Pallet Rack
In Stock
United Steel Products is one of the leading
manufacturers of Pallet Rack and Storage Systems in the U.S.
Quality products at a competitive price. Large quantities of
Rack stocked
for immediate delivery. If the size you require is not listed, contact us for production
run sizes and pricing.
Tear drop style pallet rack - interchanges with most
industry tear drop styles*
Extremely durable finish - Powder coated
colors:
*
Uprights: Vista Green / Beams: Ultra Orange
*
* Uprights have column sizes 3"x 1 5/8" - 3"x3"
* All Capacities and Design are non-seismic
IN
STOCK - SHIPS IN 72 HRS
Excel
Storage
Products
Selective Pallet Rack
|
Uprights:
Color: Vista Green
|
|
Upright
capacity Chart:
|
|
Upright
|
Capacity
|
Column Size
|
|
F14
|
15,220#
cap @ 48" beam spacing
|
3"
x 1 5/8"
|
|
F20
|
21,149#
cap @ 48" beam spacing
|
3"
x 2 1/2"
|
|
F24
|
24,530#
cap @ 48" beam spacing
|
3"
x 3"
|
|
F30
|
27,594#
cap @ 48" beam spacing
|
3"
x 3"
|
|

|
|
Description
|
Part
Number
|
Capacity
|
Wt
ea.
|
$
Price each
|
|
|
|
Based
on
48" beam Spacings
|
|
|
|
24"
x 8'-0"
|
F1424096000GV***
|
15,220#
|
36.0
|
45.89
|
|
36"
x 8'-0"
|
F1436096000GV***
|
15,220
|
39.0
|
48.85
|
|
36"
x 12'-0"
|
F2036144000GV
|
21,149
|
72.0
|
82.55
|
|
36"
x 16'-0"
|
F2436192000GV
|
21,149
|
97.0
|
119.45
|
|
42"
x 8'-0"
|
F21442096000GV***
|
21,149
|
41.0
|
51.60
|
|
42"
x 10'-0"
|
F1442120000GV***
|
21,149
|
51.0
|
65.15
|
|
42"
x 12'-0"
|
F2042144000GV
|
21,149
|
74.0
|
84.35
|
|
42"
x 14'-0"
|
F2042168000GV
|
21,149
|
87.0
|
100.25
|
|
42"
x 16'-0"
|
F2042192000GV
|
21,149
|
99.0
|
118.97
|
|
42"
x 18'-0"
|
F2442216000GV
|
24,530#
|
119.0
|
137.36
|
|
42"
x 20'-0"
|
F2442240000GV
|
24,530#
|
133.0
|
150.44
|
|
42"
x 16'-0"
|
F3042192000GV
|
27,594#
|
121.0
|
137.50
|
|
48"
x 8'-0"
|
F1448096000GV***
|
15,220#
|
42.0
|
54.91
|
|
48"
x 10'-0"
|
F2048120000GV
|
21,149
|
64.0
|
77.44
|
|
48"
x 12'-0"
|
F2048144000GV
|
21,149
|
76.0
|
86.04
|
|
48"
x 16'-0"
|
F2048192000GV
|
21,149
|
102.0
|
121.24
|
|
***Max.
4,000# per beam level
Note: Items available Quik-Ship East
Stroudsburg, Pa.
|
|
|
Beams:
Color: Ultra Orange
|
|
|
|
Description
|
Capacity/pr
|
Part
Number
|
Wt
ea.
|
$
Price each
|
|
48"
x 3 1/2"
|
6,910#
|
T3600048000OU
|
12.4
|
17.32
|
|
96"
x 2 1/2"
|
1,735#
|
T2500096000OU
|
21.3
|
23.56
|
|
96"
x 3 1/2"
|
3,483#
|
T3600096000OU
|
22.7
|
25.15
|
|
96"
x 4 1/8"
|
5,028#
|
T4124096000OU
|
23.0
|
27.24
|
|
96"
x 4 5/8"
|
6,067#
|
T4624096000OU
|
26.3
|
28.49
|
|
96"
x 5 1/8"
|
7,596#
|
T5124096000OU
|
28.0
|
30.00
|
|
108"
x 5 1/8"
|
6,788#
|
T5124108000OU
|
31.3
|
32.77
|
|
120"
x 5 1/8"
|
5,887#
|
T5124120000OU
|
34.6
|
35.54
|
|
144"
x 6"
|
6,511#
|
T5900144000OU
|
53.9
|
52.36
|
|
144"
x 6"
|
8,482#
|
T6500144000OU
|
58.4
|
56.49
|
|
Note:
Items available Quik-Ship East Stroudsburg, Pa.
|
|
Row
Spacers and Accessories
|
| |
|
|
|
| Description |
Part
Number: |
Wt.
ea. |
$
Price each |
| |
Safety
Bars |
|
| 36"
x 1 5/8" |
NSB136001GZ |
5.4 |
4.83 |
| 42"
x 1 5/8" |
NSB142001GZ |
6.2 |
5.68 |
| 48"
X 1 5/8" |
NSB148001GZ |
7.1 |
6.47 |
| |
Row
Spacers |
|
| 8" |
RR008000OU |
2.0 |
2.75 |
| 12" |
RR012000OU |
2.5 |
3.25 |
| |
Column
Protectors |
|
| 12" |
CP1250OUX |
9.0 |
11.28 |
| 18" |
CP1850OUX |
12.0 |
14.28 |
| Concrete
Anchor Bolts |
| 1/2"
x 4 3/4" |
CB-1234 |
50/box |
.85/ea |
| |
|
|
|
|
Note:
Items available Quik-Ship East Stroudsburg, Pa.
|
|
